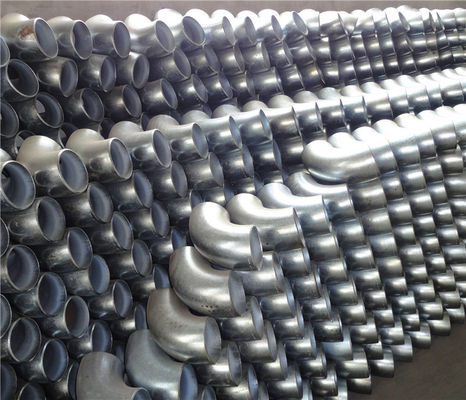

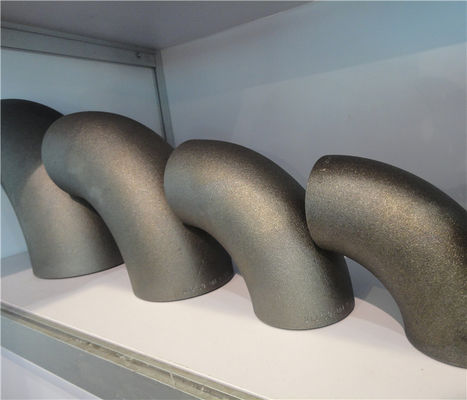

JIS B2311/ B2312 SGP standart Dirseklerin boyutları.
JIS-B2311-B2312-SGP-DİRSEK-BÜKME-ÇİZİM
45° ve 90° SGP dirsek boyutları mm olarak
| Nominal | OD | Merkezden Sona | 90˚ Ağırlık | 45 ° Ağırlık | ||||
| (NPS) | 90˚(F) | 45˚(H) | KG/PC | KG/PC | ||||
| bir | B | D | Uzun | Atış | Uzun | Uzun | Kısa | UZUN |
| 15 | ½ | 21.7 | 38.1 | - | 15.8 | 0.08 | 0.05 | 0.04 |
| 20 | ¾ | 27.2 | 38.1 | - | 15.8 | 0.1 | 0.07 | 0.05 |
| 25 | 1 | 34 | 38.1 | 25.4 | 15.8 | 0.15 | 0.1 | 0.08 |
| 32 | 1¼ | 42.7 | 47.6 | 31.8 | 19.7 | 0.26 | 0.17 | 0.13 |
| 40 | 1½ | 48.6 | 57.2 | 38.1 | 23.7 | 0.35 | 0.24 | 0.18 |
| 50 | 2 | 60.5 | 76.2 | 50.8 | 31.6 | 0.64 | 0,43 | 0.32 |
| 65 | 2½ | 76.3 | 95.3 | 63,5 | 39.5 | 1.12 | 0.75 | 0,56 |
| 80 | 3 | 89.1 | 114.3 | 76.2 | 47.3 | 1.58 | 1.05 | 0.79 |
| 90 | 3½ | 101.6 | 133.4 | 88.9 | 55.3 | 2.17 | 1.45 | 1.09 |
| 100 | 4 | 114.3 | 152.4 | 101.6 | 63.1 | 2.91 | 1,94 | 1.46 |
| 125 | 5 | 139.8 | 190.5 | 127 | 78.9 | 4.49 | 2.99 | 2.25 |
| 150 | 6 | 165.2 | 228.6 | 152.4 | 94.7 | 7.09 | 4.73 | 3.55 |
| 200 | 8 | 216,3 | 304,8 | 203.2 | 126.3 | 14.4 | 9.61 | 7.2 |
| 250 | 10 | 267.4 | 381 | 254 | 157.8 | 25.4 | 16.9 | 12.7 |
| 300 | 12 | 318.5 | 457.2 | 304,8 | 189.4 | 38.1 | 25.4 | 19.05 |
| 350 | 14 | 355,6 | 533.4 | 355,6 | 220,9 | 56.7 | 37.8 | 28.35 |
| 400 | 16 | 406.4 | 609.6 | 406.4 | 252.5 | 74.3 | 49.5 | 37.15 |
| 450 | 18 | 457.2 | 685.8 | 457.2 | 284.1 | 94.2 | 62.8 | 47.1 |
| 500 | 20 | 508 | 762 | 508 | 315.6 | 116 | 77.7 | 58 |
| 550 | 22 | 558.8 | 838.2 | 558.8 | 347.2 | 141 | 94.1 | 70.5 |
| 600 | 24 | 609.6 | 914.4 | 609.6 | 378.7 | 168 | 112 | 84 |
| 650 | 26 | 660.4 | 990.6 | 660.4 | 410.3 | 198 | 132 | 99 |
| 700 | 28 | 711.2 | 1066.8 | 711.2 | 441.9 | 230 | 154 | 115 |
| 750 | 30 | 762 | 1143 | 762 | 473.4 | 264 | 176 | 132 |
| 800 | 32 | 812.8 | 1219.2 | 812.8 | 505 | 301 | 201 | 150,5 |
| 850 | 34 | 863.6 | 1295.4 | 863.6 | 536,6 | 340 | 227 | 170 |
| 900 | 36 | 914.4 | 1371.6 | 914.4 | 568.1 | 380 | 253 | 190 |
| 950 | 38 | 965.2 | 1447.8 | 965.2 | 599.7 | 425 | 283 | 212.5 |
| 1000 | 40 | 1016 | 1524 | 1016 | 631.2 | 471 | 314 | 235.5 |
| 1050 | 42 | 1066.8 | 1600.2 | 1066.8 | 662.8 | 518 | 346 | 259 |
| 1100 | 44 | 1117.6 | 1676,4 | 1117.6 | 694.4 | 570 | 380 | 285 |
| 1150 | 46 | 1168.4 | 1752.6 | 1168.4 | 725.9 | 623 | 415 | 311.5 |
| 1200 | 48 | 1219.2 | 1828.8 | 1219.2 | 757.5 | 677 | 452 | 338.5 |
180° SGP dirsekler Boyutlar mm olarak
| Nominal | OD | C'den C'ye | Uçtan uca | 180˚ Ağırlık | ||||
| (NPS) | 180˚ (P) | 180˚(K) | KG/PC | |||||
| bir | B | D | Uzun | Atış | Uzun | Atış | Uzun | Kısa |
| 15 | ½ | 21.7 | 76.2 | - | 49 | - | 0.16 | 0.1 |
| 20 | ¾ | 27.2 | 76.2 | - | 51.7 | - | 0,2 | 0.14 |
| 25 | 1 | 34 | 76.2 | 50.8 | 55.1 | 42.4 | 0,3 | 0,2 |
| 32 | 1¼ | 42.7 | 95.2 | 63.6 | 69 | 53.2 | 0,52 | 0.34 |
| 40 | 1½ | 48.6 | 114.4 | 76.2 | 81.5 | 62.4 | 0.7 | 0.48 |
| 50 | 2 | 60.5 | 152.4 | 101.6 | 106.5 | 81.1 | 1.28 | 0.86 |
| 65 | 2½ | 76.3 | 190.6 | 127 | 133.5 | 101.7 | 2.24 | 1.5 |
| 80 | 3 | 89.1 | 228.6 | 152.4 | 158.9 | 120,8 | 3.16 | 2.1 |
| 90 | 3½ | 101.6 | 266.8 | 177.8 | 184.2 | 139.7 | 4.34 | 2.9 |
| 100 | 4 | 114.3 | 304,8 | 203.2 | 209.6 | 158.8 | 5.82 | 3.88 |
| 125 | 5 | 139.8 | 381 | 254 | 260.4 | 196.9 | 8.98 | 5.98 |
| 150 | 6 | 165.2 | 457.2 | 304,8 | 311.2 | 235 | 14.18 | 9.46 |
| 200 | 8 | 216,3 | 609.6 | 406.4 | 413 | 311.4 | 28.8 | 19.22 |
| 250 | 10 | 267.4 | 762 | 508 | 514.7 | 387.7 | 50.8 | 33.8 |
| 300 | 12 | 318.5 | 914.4 | 609.6 | 616.5 | 464.1 | 76.2 | 50.8 |
| 350 | 14 | 355,6 | 1066.8 | 711.2 | 711.2 | 533.4 | 113.4 | 75.6 |
| 400 | 16 | 406.4 | 1219.2 | 812.8 | 812.8 | 609.6 | 148.6 | 99 |
| 450 | 18 | 457.2 | - | - | - | - | 188.4 | 125.6 |
| 500 | 20 | 508 | - | - | - | - | 232 | 155.4 |
| 550 | 22 | 558.8 | - | - | - | - | 282 | 188.2 |
| 600 | 24 | 609.6 | - | - | - | - | 336 | 224 |
| 650 | 26 | 660.4 | - | - | - | - | 396 | 264 |
| 700 | 28 | 711.2 | - | - | - | - | 460 | 308 |
| 750 | 30 | 762 | - | - | - | - | 528 | 352 |
| 800 | 32 | 812.8 | - | - | - | - | 602 | 402 |
| 850 | 34 | 863.6 | - | - | - | - | 680 | 454 |
| 900 | 36 | 914.4 | - | - | - | - | 760 | 506 |
| 950 | 38 | 965.2 | - | - | - | - | 850 | 566 |
| 1000 | 40 | 1016 | - | - | - | - | 942 | 628 |
| 1050 | 42 | 1066.8 | - | - | - | - | 1036 | 692 |
| 1100 | 44 | 1117.6 | - | - | - | - | 1140 | 760 |
| 1150 | 46 | 1168.4 | - | - | - | - | 1246 | 830 |
| 1200 | 48 | 1219.2 | - | - | - | - | 1354 | 904 |
